SCN34, coilpistol, dubbel

Klicka på bilden för att zooma

Beskrivning

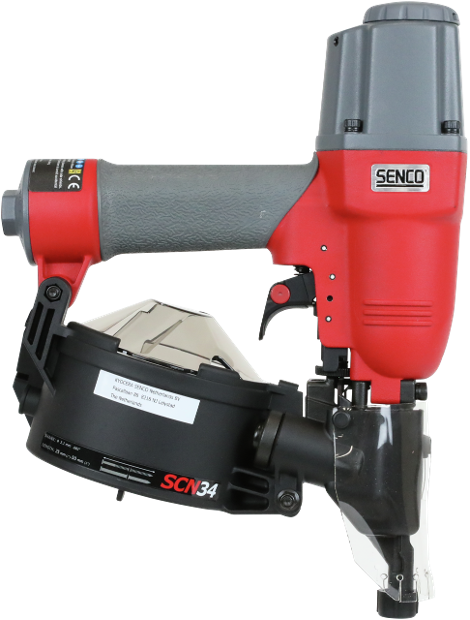

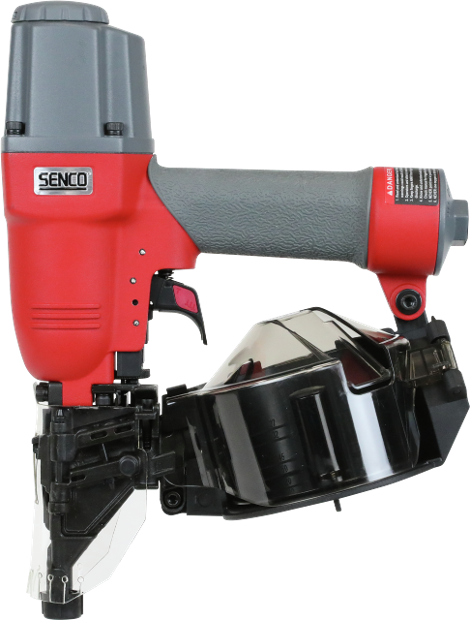

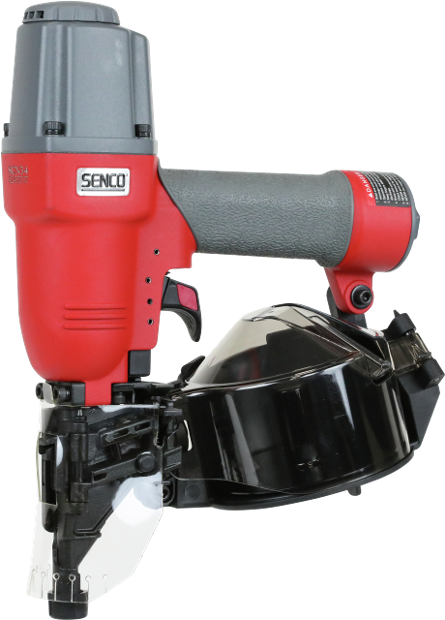

Den lättviktiga och kompakta designen hos SCN34 låter den vara högst manövrerbar och skjuta rullbandsspik från 25 mm till 50 mm.

Visa mer Visa mindre

Har du frågor?

Produktinformation

Identifiering

Serie: Pro
Artikelnummer: SCN34
GTIN: 8715274012261
Typ: SCN34

Teknisk specifikation

Vinkel: 16 °
Rullbandning: Konisk
Alternativ rullbandning: Flat
Oljefri: Nej
Arbetstemperatur: -18 - 49 °C
Bandning: Wirebandad
Alternativ bandning: Plastbandad 9mm
Avtryckare: Omställningsbar singel-/stötspikning
Magasinkapacitet: 400
Skott/sekund: 4
Luftinlopp storlek: 3/8″ hona invändig gänga
Luftförbrukning vid 60 skott/min: 43.8 l/m
Arbetstryck: 4.8 - 8.3 bar
Ljudtrycksnivå: 83.1 Lpa
Ljudeffektnivå: 94.6 Lwa
Vibrationsnivå: 3.81 m/s2

Infästning specifikation

Typ av spik: Rullbandad spik
Slät spik: Slät stam
Längd slät stam: 25 - 50 mm
Diameter slät stam: 1,6 - 2,1 mm
Ringad spik: Ringad stam
Längd ringad stam: 25 - 50 mm
Diameter ringad stam: 1,6 - 1,6 mm
Min. Gängstigning: 6.0 mm
Max. Gängstigning: 6.0 mm
Max. Ytterdiameter spikrulle: 100 mm

Övrig information

Garanti: 1 år
Dimension (DxBxH): 108 x 260 x 302 mm

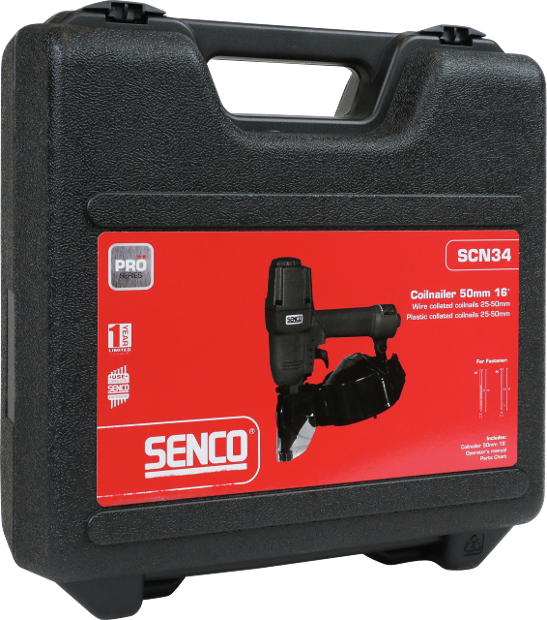

Verktygsväska medföljer: Ja

Logistiska specifikationer

Nettovikt: 1.55 kg

Relaterade fästdon

Dokument

Manual SENCO Coilnailers PDF 21 Mb
Part chart SENCO coilnailer SCN34 PDF 2 Mb
SCN34_sv_CommercialProductSheet_1.3_1748454171841 PDF 2 Mb
