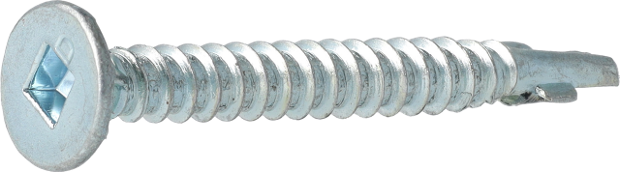

Trä mot kraftig stålskruv SQ2 elförzinkad 4,2x65mm

Klicka på bilden för att zooma

Beskrivning

Trä mot kraftig plåtregel, blank

Visa mer Visa mindre

Harmoniserad standard EN 14566:2008+A1:2009

Har du frågor?

Produktinformation

Identifiering

Artikelnummer: 42GS65MC
GTIN: 8718035018441

Teknisk specifikation

Bandning: Plastbandad
Trådmaterial: Kolstål standard tensile
Varvtal: 2300, 2500, 3000, 3300 RPM

Infästning specifikation

Ytbehandling: Elförzinkad
Applikationsmiljö: Skyddad miljö
Spets: Självborrande vingar
Vinkel spets: 110 °
Skalle: Platt skalle med 8 skärande rillor
Spårtyp/bits: Fyrkant 2
Gängning: Fingängad
Antal per strip/rulle: 50 - 50
Skruvlängd: 65.0 mm
Skruvdiameter: 4.2 mm

CE specifikation

DOP No: 42GS65MC
Serviceklass: 1
Innergängans diameter: 3.5 mm
Längd gängning: 43.3 mm
Harmoniserad standard: EN 14566:2008+A1:2009

Övrig information

Förpackningsstorlek: 1000

Logistiska specifikationer

Nettovikt: 5.99 kg

Relaterade verktyg

Dokument

42GS65MC_sv_CommercialProductSheet_1.4_1750165847589 PDF 1 Mb
DOP DSP980005 PDF 403 Kb
DOP DSP980005 PDF 403 Kb
42GS65MC_sv_DeclarationOfPerformanceDoP_1.1eu_1750165919026 PDF 59 Kb
