GC rakbandad rakbandad spik 2,87x70mm

Klicka på bilden för att zooma

Beskrivning

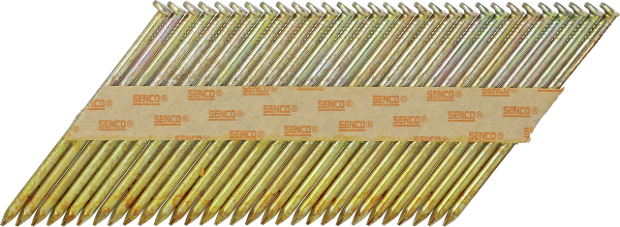

2,87mm rakbandad spik, galvaniserad, Sencote

Visa mer Visa mindre

Harmoniserad standard EN 14592:2008+A1:2012

Har du frågor?

Produktinformation

Identifiering

Artikelnummer: GC56AABKR
GTIN: 8715274043784

Teknisk specifikation

Vinkel: 34 °
Bandning: Pappersbandad
Trådmaterial: Kolstål standard tensile

Infästning specifikation

Ytbehandling: Galvaniserad
Coating: Sencote lim
Applikationsmiljö: Skyddad miljö
Typ av spik: Rakbandad spik 34 grader
Typ av skalle: D-skalle
Typ av spikstam: Slät stam
Spets: Diamantspets
Vinkel spets: 40 °
Spikdiameter: 2.87 mm
Antal per strip/rulle: 29 - 31
Spiklängd: 70.0 mm

CE specifikation

Karakteristiskt genomdragsvärde: 27.12 N/mm²
CE-typ fästdon: Slät spik med runt tvärsnitt
DOP No: GC56AABKR
Skikttjocklek i mikron: ≤5
Serviceklass: 1
Typ av coating: Coating typ 3
Längd coating: 43.0 mm
Skallens tvärsnittsyta: 30.0 mm
Karakteristiskt böjningsmoment: 3054.0 Nmm
Karakteristiskt draghållfasthetsvärde: 695.0 N/mm²
Harmoniserad standard: EN 14592:2008+A1:2012
Karakteristisk utdragsvärde: 2.45 N/mm²

Övrig information

Förpackningsstorlek: 2000

Logistiska specifikationer

Nettovikt: 7.36 kg

Relaterade verktyg

Dokument

GC56AABKR_sv_CommercialProductSheet_1.5_1729236843230 PDF 1 Mb
DOP VS-CPR-201305-S026 PDF 182 Kb
GC56AABKR_sv_DeclarationOfPerformanceDoP_1.0eu_1729236718522 PDF 61 Kb
