GK skruv coilspik 2,87mmx80mm

Klicka på bilden för att zooma

Beskrivning

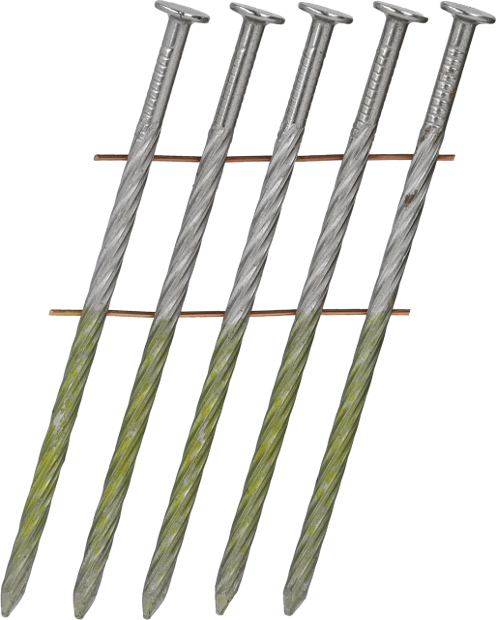

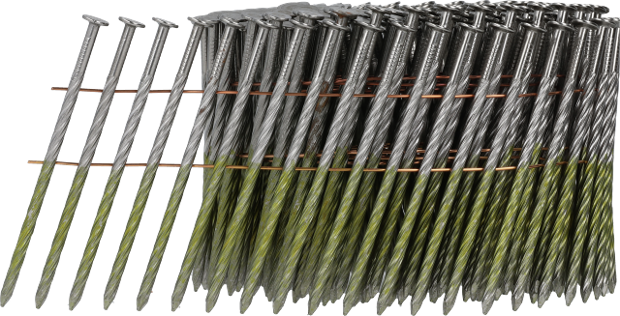

2,87mm platt skruv rullbandsspik, blank Sencote

Visa mer Visa mindre

Harmoniserad standard EN 14592:2008+A1:2012

Har du frågor?

Produktinformation

Identifiering

Artikelnummer: GK28APBF
GTIN: 8715274026404

Teknisk specifikation

Vinkel: 16 °
Rullbandning: Flat
Bandning: Wirebandad
Trådmaterial: Kolstål standard tensile

Infästning specifikation

Ytbehandling: Blank tråd standard tensile
Coating: Sencote lim
Applikationsmiljö: Skyddad miljö
Typ av spik: Rullbandad spik
Typ av spikstam: Skruvad stam
Spets: Diamantspets
Vinkel spets: 40 °
Min. Gängstigning: 8.4 mm
Max. Gängstigning: 8.4 mm
Max. Ytterdiameter spikrulle: 122 mm
Spikdiameter: 2.87 mm
Antal per strip/rulle: 250 - 250
Spiklängd: 80.0 mm

CE specifikation

Karakteristiskt genomdragsvärde: 25.1 N/mm²
CE-typ fästdon: Skruvad spik med runt tvärsnitt
DOP No: GK28APBF
Serviceklass: 1
Typ av coating: Coating typ 3
Skallens tvärsnittsyta: 36.0 mm
Karakteristiskt böjningsmoment: 3000.0 Nmm
Karakteristiskt draghållfasthetsvärde: 695.0 N/mm²
Harmoniserad standard: EN 14592:2008+A1:2012
Karakteristisk utdragsvärde: 5.2 N/mm²

Övrig information

Förpackningsstorlek: 4500

Logistiska specifikationer

Nettovikt: 18.06 kg

Relaterade verktyg

Dokument

GK28APBF_sv_CommercialProductSheet_1.6_1748497817230 PDF 1 Mb
GK28APBF_sv_DeclarationOfPerformanceDoP_1.0eu_1748497755461 PDF 61 Kb
