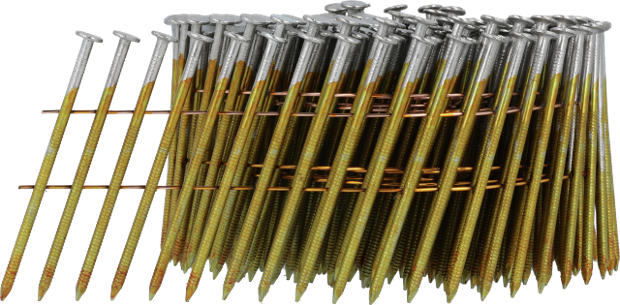

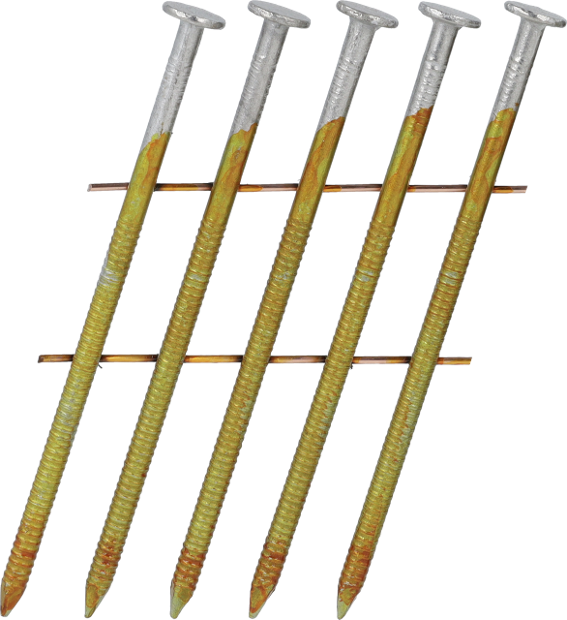

Rullbandad spik 50x2,5mm 16º, ringad, blank, jumborulle

Klicka på bilden för att zooma

Beskrivning

2,5mm platt ringad rullbandsspik, VFZ, Sencote, Highload

Visa mer Visa mindre

Applikationer

Skivmaterial, Spånskiva, Träfiberskiva

Visa mer Visa mindre

Harmoniserad standard EN 14592:2008+A1:2012

Har du frågor?

Produktinformation

Identifiering

Artikelnummer: BL21ASBFP
GTIN: 8715274289625

Teknisk specifikation

Vinkel: 16 °
Rullbandning: High load
Bandning: Wirebandad
Trådmaterial: Kolstål standard tensile

Infästning specifikation

Ytbehandling: Varmförzinkad 3
Coating: Sencote lim
Applikationsmiljö: Fullt exponerad
Typ av spik: Rullbandad spik
Typ av spikstam: Ringad stam
Spets: Diamantspets
Vinkel spets: 36 °
Min. Gängstigning: 8.4 mm
Max. Gängstigning: 8.4 mm
Max. Ytterdiameter spikrulle: 122 mm
Spikdiameter: 2.5 mm
Antal per strip/rulle: 275 - 275
Spiklängd: 50.0 mm

CE specifikation

Karakteristiskt genomdragsvärde: 25.5 N/mm²
CE-typ fästdon: Kamgängad spik med runt tvärsnitt
DOP No: BL21ASBFP
Skikttjocklek i mikron: 55
Serviceklass: 3
Typ av coating: Coating typ 3
Skallens tvärsnittsyta: 27.0 mm
Längd gängning: 37.0 mm
Karakteristiskt böjningsmoment: 1620.0 Nmm
Karakteristiskt draghållfasthetsvärde: 700.0 N/mm²
Harmoniserad standard: EN 14592:2008+A1:2012
Karakteristisk utdragsvärde: 9.1 N/mm²

Övrig information

Förpackningsstorlek: 9000

Relaterade verktyg

Dokument

BL21ASBFP_sv_CommercialProductSheet_1.8_1752273691662 PDF 1 Mb
DOP VS-CPR-201305-S005 PDF 125 Kb
BL21ASBFP_sv_DeclarationOfPerformanceDoP_1.0eu_1748482891468 PDF 62 Kb
