Allmänt trä mot trä skruv, gul zink

Produktinformation

Identifiering

Article number

42K25MY

GTIN

8715274010793

Teknisk specifikation

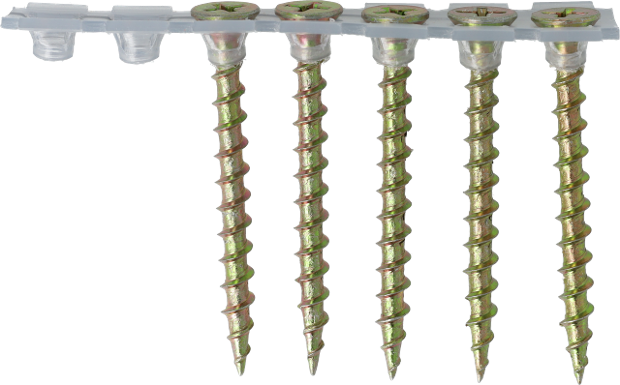

Collation type

Plastic collated

Wire material

Carbon steel standard tensile

Rotations per minute

3300, 4000, 5000 RPM

Infästning specifikation

Finish

Yellow zinc

Application environment

Indoor

Point type

Type 17 cut point

Pointangle

23 °

Screw head type

Flat

Screw recess

Philips 2

Screw thread type

Coarse

Amount fasteners on strip/coil

50 - 50

Screw length

25.0 mm

Screw diameter

4.2 mm

CE specifikation

Characteristic head pull through parameter

16.0 N/mm²

DOP No

42K25MY

Material notification on CE label

Non-alloy steel

Protection level in micron

3

Service class

1

Inner threaded diameter

3.05 mm

Threaded/profiled length

21.0 mm

Characteristic yield moment

3283.0 Nmm

Torsional ratio

≥1,5

Characteristic torsional resistance

1.28 Nm

Characteristic torsional strength

3.4 Nm

Characteristic tensile capacity

4700.0 N

Harmonized standard

EN 14592:2008+A1:2012

Characteristic withdrawal parameter

12.0 N/mm²

Övrig information

Package quantity

1000

Logistiska specifikationer

Net weight

1.84 kg
